TR7 Chopper

  Important Announcement

THIS IS NOT!!!! THE ORIGINAL RATBIKE.ORG, BUT AN ARCHIVE FOR THOSE WHO CAN'T LIVE WITHOUT IT.

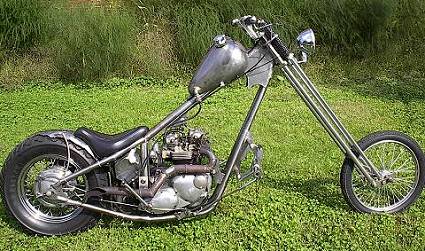

triumph tr7 springer chopper
we built a cool rat out of......fence posts, chair legs, steel from swedish embassy, short bus parts, plumbing fixtures, and other stuff layin' around this place! it started as a '76 tiger, we used the motor, motor mounts, goose neck..... the rest we made or scrounged. Looks pretty cool we think - rats rule!

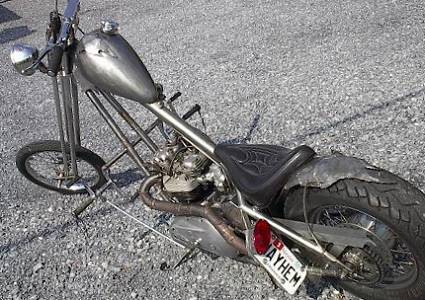

tr7 derake stretch frame
SPEC:
Total rebuild Motor & Tranny: Crank bearings,Main Rod bearings & bushings, Valve guides & Valves, Piston kits... etc
Frame / Custom made by DMT
Fender / Custom made, Fender mounts / Old Chair parts
Tag bracket / Custom made with mount from Electric fence posts
Motor mounts / Steel from walls of the Swedish Embassy,Wash. DC
Top motor mount / 'U' bolts, bones bus fuel tank bars
Front End / Old Customs,traded a 270 Rifle, Front Wheel Rim & Spokes / Old moped
Top Triple tree / Custom made, Forward Controls / Old Customs with custom made foot pegs
Brake linkage / Old British, Rear Wheel assembly / 600 shadow
Risers & Bars / Harley, Seat & Pan / Custom made pan / Seat by LePera
Exhaust Pipes / Custom made, Paint / Clear over Raw Steel

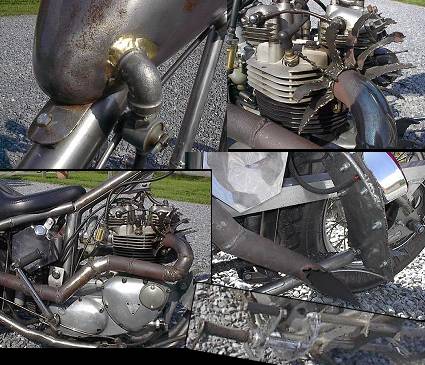

radical triumph chopper
