Motor Bicycle

  Important Announcement

THIS IS NOT!!!! THE ORIGINAL RATBIKE.ORG, BUT AN ARCHIVE FOR THOSE WHO CAN'T LIVE WITHOUT IT.

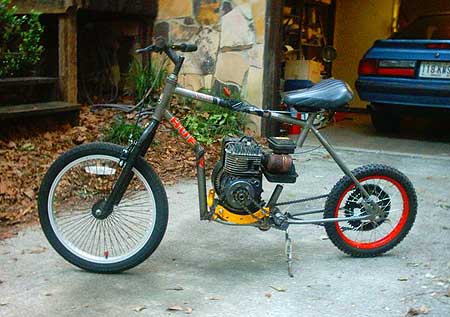

side view
Hi, my name is Adam from Stone Mountain, GA. I have this huffy bike I made into a motor-bike.... It actually runs (really well!) goes about 35mph, has breaks and a springy seat.
I took the Ringset (crank sprockets) off an old 10-speed bike and welded it to a back-break kids' bike hub nut then used the skewer assemb. and threw it into a 16'' tyre, then added a 20'' 144-spoke front wheel up front. I changed the tyre-side jackshaft sprocket to a #41 8- tooth and used #41-1R chain to the rear drive gear. That solved all my power-train problems. I have the matching rear wheel but I have to see if the hub will accept the skewer setup I have (which IS removeable), but that will lower my initial torque and up my top speed. Also in the works is a twist-style accelerator because the suicide accelerator I have gets a bit tiresome :)

Adam C.
